Welcome to this page on setting fixing your modified cell phone to work with your security system and how to solder the wire to the

Welcome to this page on how to connect the wires from the phone to the Relay board then fix it to your Security system.

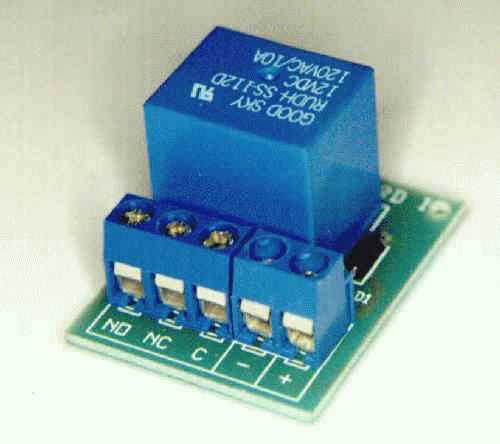

1). The first thing we need to do is connect our modified cell phone to the relay the best way and most professional looking way would be to use the kit below.

You can see the two wires from my modified cell phone in the photo above Now we want to connect our cell phone to the kit below connect one wire to the NO screw terminal and the next wire to the C Screw terminal it does not matter witch way the wires are put in.

You can buy the above relay kit from here.

Now when you have connected your modified cell phone to the above kit go to your Alarm system and look at the wires coming out of the Bell Terminal this will often be Bell + or B+ or some thing like that same for the Bell - or B - now connect a wire from the Bell + to the + on the above kit and now connect a wire from the Bell - to the - on the above kit.

Now as you can see from the photo above I have connected my electronic kit inside my main alarm system.

Now you can see my main security system with case back on and modified cell phone ready to send a signal if my security system gets activated.

Now connect your mobile charger in the bottom of your modified cell phone and it may be best to buy a electrical timer switch this is so you can charge or keep the phone topped up with out removing it from the alarm system. Now activate your alarm and the phone should phone your mobile phone.
