Welcome to the second part of the simple mains powered portable panic alarm system with hand held transmitter.

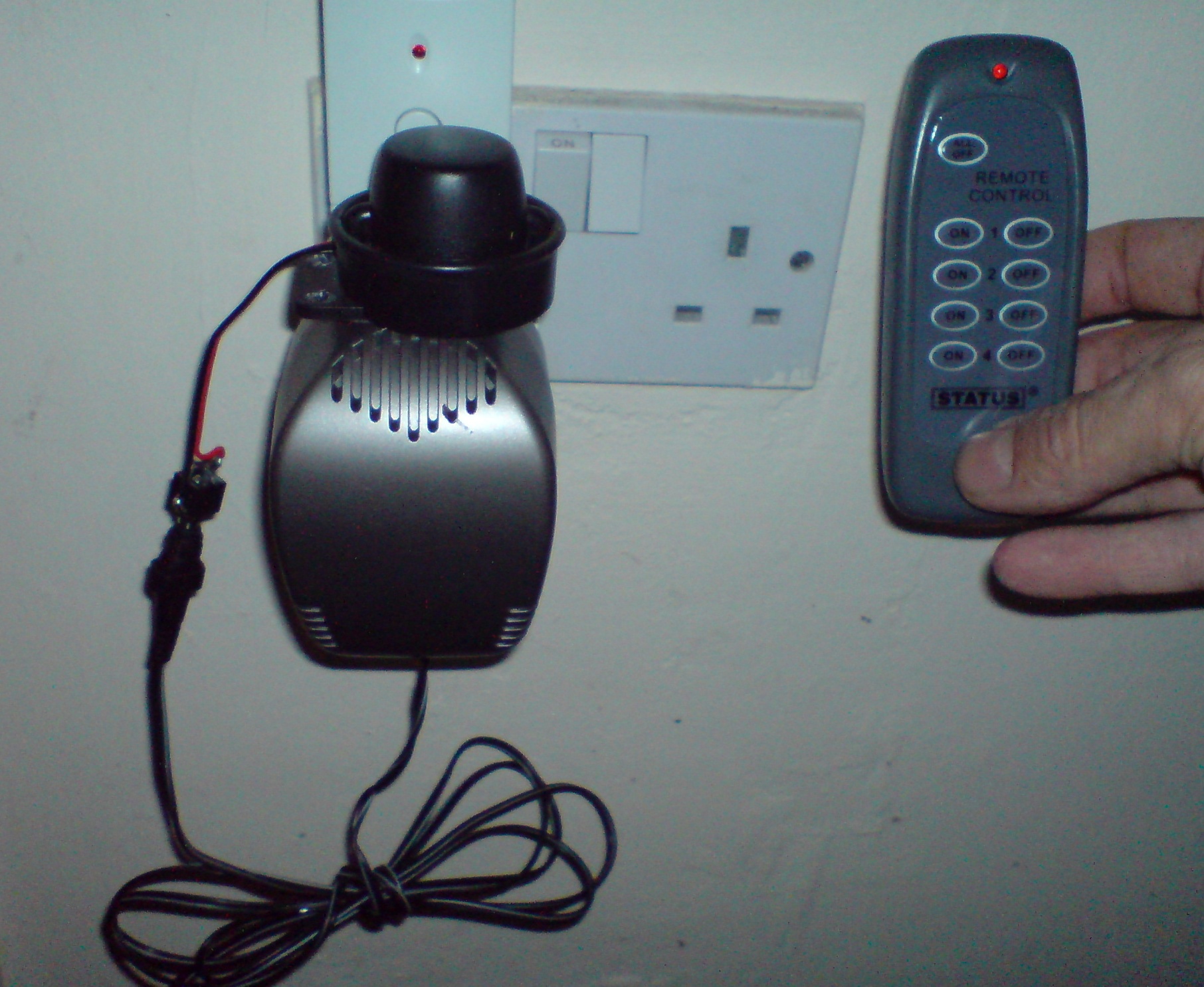

Now as you can see from the photo it is very simple to set up.
15). First thing to do is check your power supply 3.5mm jack plug is set for a + tip.

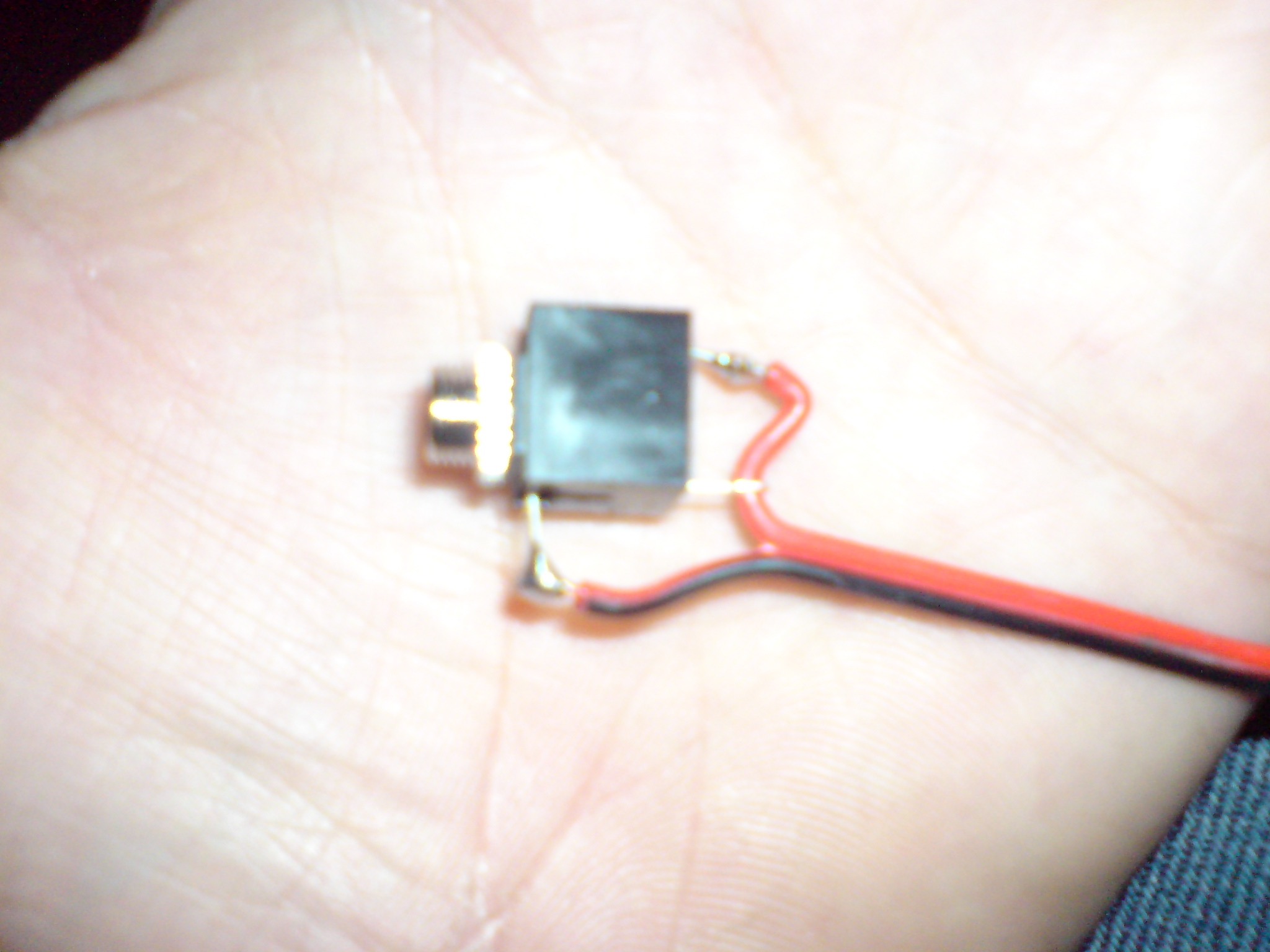

16). Now you will need to solder a Black wire from the siren to the 3.5mm socket like in the photo below and do the same with the red wire.
17). Now plug your mains remote control in to the mains socket and plug your 12 volt adapter in to the remote control adapter then plug your 12 volt siren in to the jack plug coming from the 12 volt adapter with a + tip.
18). Now all that is left to do is test your unit switch the mains switch on your remote control adapter the LED will be on or flashing press the button on your remote control for the unit to activate the siren.
19). Now the siren has been activated use the same button on the remote control for that siren when you want to turn it on or off or you may have a off button next to it check your manual.
